網路技術標準
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
-
產品分類
AC5300 ultimate AC performance:1000+2167+2167 Mbps
-
涵蓋範圍
Very large homes
-
傳輸量
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 600 Mbps
802.11ac : up to 1734 Mbps
1024QAM (2.4GHz) : up to 1000 Mbps
1024QAM (5GHz) : up to2167 Mbps
-
天線
外部 天線 x 8
-
Transmit/Receive
MIMO technology
2.4 GHz 4 x 4
5 GHz-1 4 x 4
5 GHz-2 4 x 4
-
記憶體
256 MB Flash
1024 MB RAM
-
Wi-Fi 技術
波束成形技術： 標準通用
1024-QAM 高資料傳輸速率
20/40/80 MHz 頻寬
-
運作頻率
2.4G Hz, 5 GHz-1, 5 GHz-2
-
加密模式
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, 支援 WPS
-
防火牆與進階功能
防火牆： SPI 入侵偵測、DoS 防護
存取控制： 監護人控制、網路服務篩選器、URL 篩選器、連接埠篩選器
-
管理程式
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log
-
連線類型
網路連線類型 : 浮動 IP, 固定 IP, PPPoE(支援 MPPE), PPTP, L2TP
-
網路埠規格
RJ45 for 10/100/1000/Gigabits BaseT for WAN x 1, RJ45 for 10/100/1000/Gigabits BaseT for LAN x 8
USB 3.0 x 2
-
功能
Link Aggregation
- 802.3ad
MU-MIMO
Airtime Fairness
Smart Connect
Traffic Analyzer
Adaptive QoS
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
Mac OS Backup
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
Dual WAN
IPTV support
Roaming Assist
-
按鈕
WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button
-
LED 指示燈
Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
WPS x 1
-
電源規格
AC 輸入： 110V~240V(50~60Hz)
DC 輸出：19 V 最大3.42 A 電流
-
產品尺寸
245 x 245 x 65 ~ mm (寬x長x高) (Without Bezel)
-
重量
-
顏色
Black
-
包裝內容

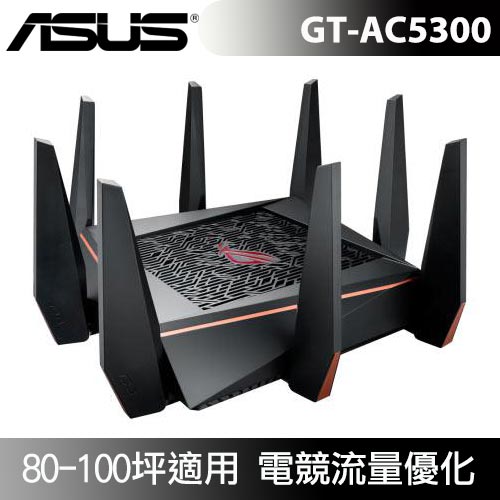

GT-AC5300 無線三頻遊戲分享器
RJ-45 連接線
電源變壓器
快速入門指南
保固卡
-
Operation mode
Wireless router mode
Access point mode
