IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IPv4, IPv6
-
產品分類
AC1750新世代極致效能 ; 450+1300Mbps
-
涵蓋範圍
Large homes
-
傳輸量
802.11a : 6,9,12,18,24,36,48,54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6,9,12,18,24,36,48,54 Mbps
802.11n : up to 450 Mbps
802.11ac : up to 1300 Mbps
-
天線
外部 天線 x 3
-
Transmit/Receive
MIMO technology
2.4 GHz 3 x 3
5 GHz 3 x 3
-
運作頻率
2.4 GHz / 5 GHz
-
加密模式
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise
-
防火牆與進階功能
Firewall：SPI intrusion detection,DoS protection
Access control：Parental control, Network service filter, URL filter, Port filter
-
管理程式
UPnP, IGMP v1/v2/v3, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, Universal Repeater, System Event Log
-
網路埠規格
RJ45 for 10/100/1000 BaseT for WAN x 1, RJ45 for 10/100/1000 BaseT for LAN x 4
USB 2.0 x 1
USB 3.0 x 1
-
功能
Airtime Fairness
Traffic Analyzer
Adaptive QoS
SmartQoS
- WMM
- User definable rules for IP/MAC/Port
- Upload and download bandwidth management
- ACK/SYN/FIN/RST/ICMP with highest priority
AiProtection
Parental Control
Guest Network : 2.4 GHz x 3, 5 GHz x 3
VPN server : IPSec Pass-Through, PPTP Pass-Through, L2TP Pass-Through, PPTP Server, OpenVPN Server
VPN client : PPTP client, L2TP client, OpenVPN client
Enhanced media server (AiPlayer app compatible)
- Image : Jpeg
- Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
AiCloud personal cloud service
3G/4G data sharing
Printer Server
- Multifunctional printer support (Windows only)
- LPR protocol support
Download Master
- Support bt, nzb, http, ed2k
- Support encryption, DHT, PEX and magnet link
- Upload and download bandwidth control
- Download scheduling
AiDisk file server
- Samba and FTP server with account management
IPTV support
-
按鈕
WPS Button, Reset Button, Power Button, Wireless on/off Button
-
LED 指示燈
Power x 1
Wi-Fi x 2
WAN x 1
LAN x 4
-
電源規格
AC 輸入： 110V~240V(50~60Hz)
DC 輸出：19 V 最大1.75 A 電流
-
作業系統支援
WindowsR 10
WindowsR 8.1
WindowsR 8
WindowsR 7
WindowsR XP
Mac OS X or higher
Linux
-
產品尺寸
218 x 148 x 45 ~ mm (寬x長x高)
-
重量
-
包裝內容

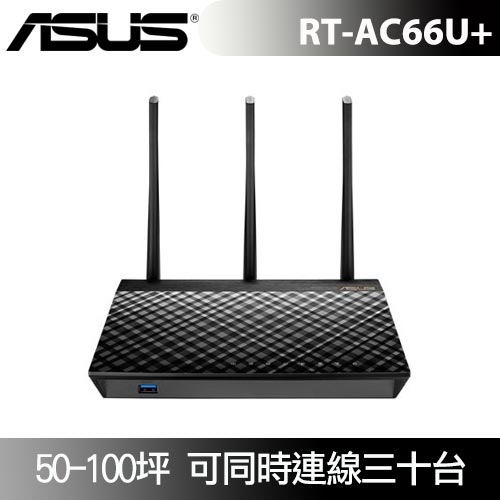

RT-AC66U Dual Band 3x3 802.11AC Gigibit Router
RJ-45 cable
Support CD (User manual and utility software)
Power adapter
Quick start guide
Warranty card
-
Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode
