Data Rate
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6,9,12,18,24,36,48,54Mbps
802.11n : up to 450Mbps
802.11n TurboQAM：up to600Mbps
-
Antenna
Detachable antenna x 3
-
Operating Frequency
2.4GHz
-
Encryption
64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support
-
Firewall & Access Control
Firewall: SPI intrusion detection,DoS protection
Access control: Parental control, Network service filter, URL filter, Port filter
-
Management
UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Triger, Universal Repeater, System Event Log
-
VPN Support
IPSec Pass-Throuth
PPTP Pass-Through
L2TP Pass-Through
PPTP server
OpenVPN server
PPTP client
L2TP client
OpenVPN client
-
WAN Connection Type
Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP
WAN Bridge support
Multicast Proxy support
Multicast Rate Setting support
-
Utilities
．Download master
- support BT, NZB, HTTP, ED2K
- support encryption, DHT, PEX and magnet link
- upload and download bandwidth control
- download scheduling
．Media server:
- Image: JPEG
- Audio: mp3, wma, wav, pcm, mp4, lpcm, ogg
- Video: asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov
．QoS:
- WMM
- User definable rules for IP/MAC/Port. Upload and Download bandwidth management.
- ACK/SYN/FIN/RST/ICMP with Highest priority
．Guest Network
- 2.4GHz guest network x 4
．Printer Server: multifunctional printer support(Windows nly), LPR protocol support
．File server: Samba and FTP server with account management
．PPTP VPN server
．Network map
．Traffic monitor
-
Ports
4 x RJ45 for 10/100/1000/Gigabits BaseT for LAN, 1 x RJ45 for 10/100/1000/Gigabits BaseT for WAN
USB 2.0 x 1
USB 3.0 x 1
-
Button
WPS Button, Reset Button, Power Button
-
LED Indicator
PWR x 1
Wi-Fi x 1
LAN x 1
WAN x 1
USB x 2
-
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 1.5 A current
-
OS Support
WindowsR 8.1
WindowsR 8
WindowsR 7
WindowsR Vista
WindowsR 2000
WindowsR ME
WindowsR XP
WindowsR Server 2003
WindowsR Server 2008
Mac OS X
Mac OS X 10.1
Mac OS X 10.4
Mac OS X 10.5
Mac OS X 10.6
Mac OS X 10.7
Mac OS X 10.8
Linux Kernel (Support Ubuntu only)
Linux
-
Dimensions
207 x 150 x 37 mm (WxDxH)
-
Weight
520 g
-
Package Content

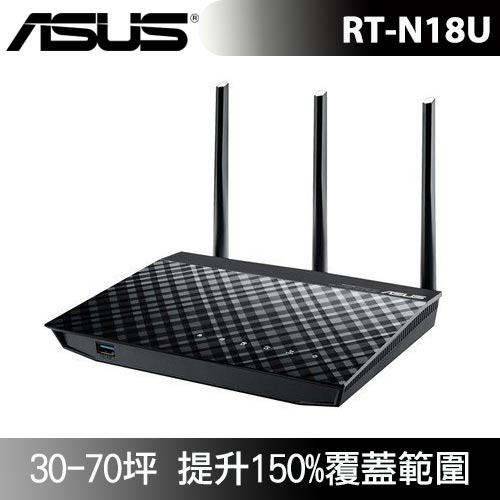

1 x RT-N18U 2.4GHz 600Mbps High Power Router
1 x RJ-45 cable
1 x Power adapter
1 x QSG
1 x Warranty card
-
Router Special Features
3G/4G data sharing, AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control
-
Operation mode
Wireless router mode
Range extender mode
Access point mode
Media bridge mode
