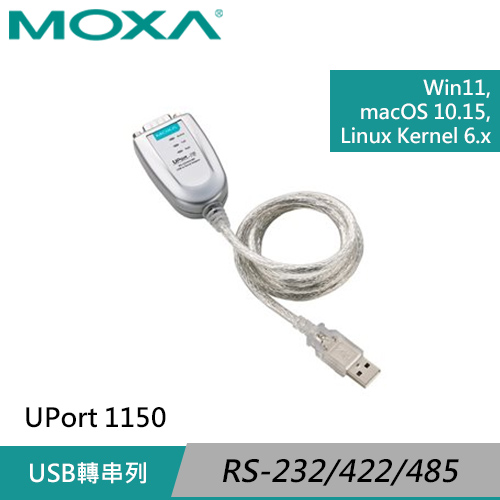

USB Interface |
|
|
Speed |
12 Mbps |
|
USB Connector |
UPort 1110/1130/1130I/1150: USB Type A
UPort 1150I: USB Type B |
|
USB Standards |
USB 1.0/1.1 compliant, USB 2.0 compatible |
|
Serial Interface |
|
|
No. of Ports |
1 |
|
Connector |
DB9 male |
|
Baudrate |
50 bps to 921.6 kbps |
|
Data Bits |
5, 6, 7, 8 |
|
Stop Bits |
1, 1.5, 2 |
|
Parity |
None, Even, Odd, Space, Mark |
|
Flow Control |
None, RTS/CTS, XON/XOFF |
|
Isolation |
UPort 1130I/1150I: 2kV |
|
Serial Standards |
UPort 1110: RS-232
UPort 1130/1130I: RS-422, RS-485
UPort 1150/1150I: RS-232, RS-422, RS-485 |
|
Serial Signals
|
|
|
RS-232
|
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
|
|
RS-422
|
Tx+, Tx-, Rx+, Rx-, GND
|
|
RS-485-4w
|
Tx+, Tx-, Rx+, Rx-, GND
|
|
RS-485-2w
|
Data+, Data-, GND
|
|
Power Parameters
|
|
|
Input Voltage |
5 VDC
|
|
Input Current |
UPort 1110: 30 mA
UPort 1130: 60 mA
UPort 1130I: 65 mA
UPort 1150: 77 mA
UPort 1150I: 260 mA
|
|
Physical Characteristics
|
|
|
Housing |
UPort 1110/1130/1130I/1150: ABS + Polycarbonate
UPort 1150I: Metal |
|
Dimensions
|
UPort 1110/1130/1130I/1150:
37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
UPort 1150I:
52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)
|
|
Weight |
UPort 1110/1130/1130I/1150: 65 g (0.14 lb)
UPort 1150I: 75 g (0.16 lb)
|
|
Environmental Limits
|
|
|
Ambient Relative Humidity
|
5 to 95% (non-condensing)
|
|
Operating Temperature
|
0 to 55°C (32 to 131°F) |
|
Storage Temperature (package included)
|
-20 to 70°C (-4 to 158°F) |
|
Standards and Certifications
|
|
|
EMC
|
EN 55032/24 |
|
EMI
|
CISPR 32, FCC Part 15B Class 1
|
|
EMS
|
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF
|
|
Declaration |
|
|
Green Product |
RoHS, CRoHS, WEEE |
|
MTBF
|
|
|
Time
|
1,949,025 hrs |
|
Standards
|
MIL-HDBK-217F
Telcordia (Bellcore), GB
|
|
Warranty
|
|
|
Warranty Period
|
5 years |
|
Details
|
See www.moxa.com/tw/warranty |
