Hardware :
SF100 is designed with ISP header, through an appropriate connector, users can connect the programmer and drive the SPI signals, supply the memory and control the controller or application status.Please refer to Table 1 for the SF100 2x7 header pin out.

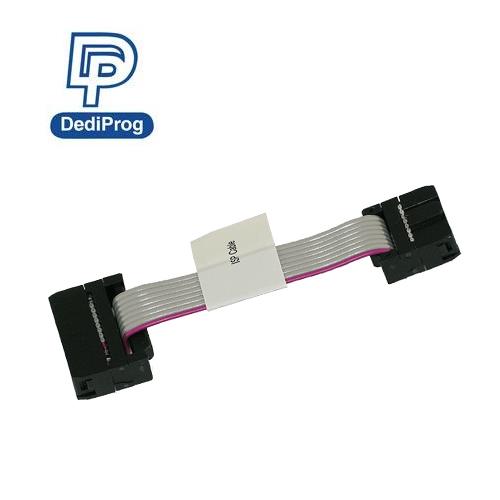

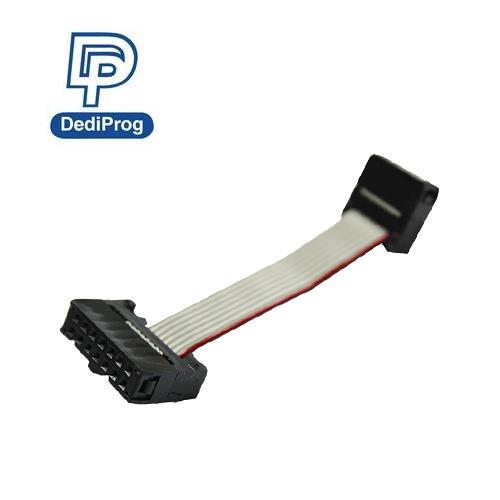

DediProg also provides the SF100 ISP Cable which is used to connect the SF100 programmer to the 2X4 2.54mm ISP Pin Header on board, please refer to Table 2 for the SF100 ISP Cable 2x4 pin out.
Table 1: SF100 ISP Header Pin Out (2x7)
|
1 |
I/O1 |
I/O4 |
2 |
|
3 |
I/O2 or CS2 |
NC |
4 |
|
5 |
Vcc |
GND |
6 |
|
7 |
CS |
CLK |
8 |
|
9 |
MISO |
MOSI |
10 |
|
11 |
Vpp/Acc |
I/O3 |
12 |
|
13 |
SCL |
SDA |
14 |
Table 2: ISP Cable Connector Pin Out (2x4)
|
1 |
Vcc |
GND |
2 |
|
3 |
CS |
CLK |
4 |
|
5 |
MISO |
MOSI |
6 |
|
7 |
Vpp/Acc |
I/O3 |
8 |

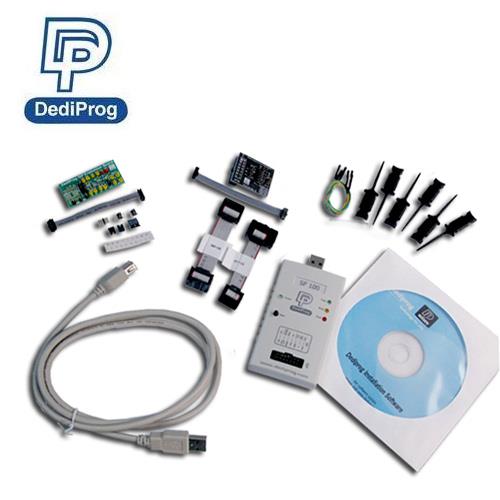

Contents :
‧1x USB cable
‧1x SF100 Programmer
‧1x ISP cable
‧1x SF100 Universal Adaptor
‧CDROM with Software, specifications and user manual
Hardware Requirement for ISP :
‧To have a clear understanding on the different ISP or backup boot methods and different reference schematics, please download our dedicated application notes: AN0103 and AN0106 in the documentation section
Option Purchase :

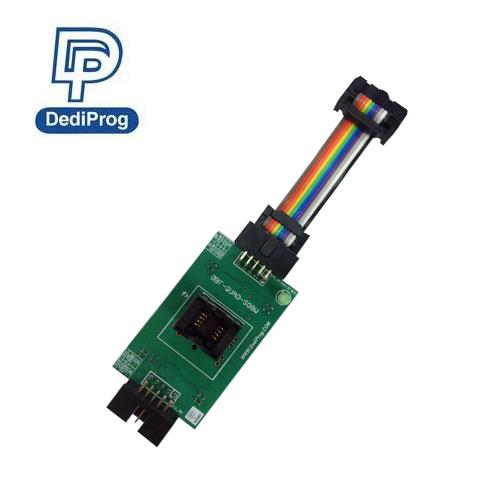

‧Backup Boot Flash-SO8N
‧Backup Boot Flash-Dual SO8N
‧Backup Boot Flash-SO8W
‧Backup Boot Flash-Dual SO8W
‧Backup Boot Flash-SO16W
‧Backup Boot Flash-Dual SO16W
‧BBF SO8 Testclip
‧BBF SO8 Testclip-Dual
‧BBF SO16W Testclip

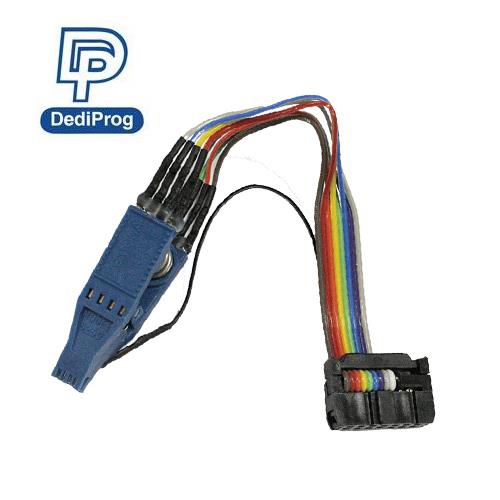

‧ISP SO8 Testclip
‧ISP SO16W Testclip

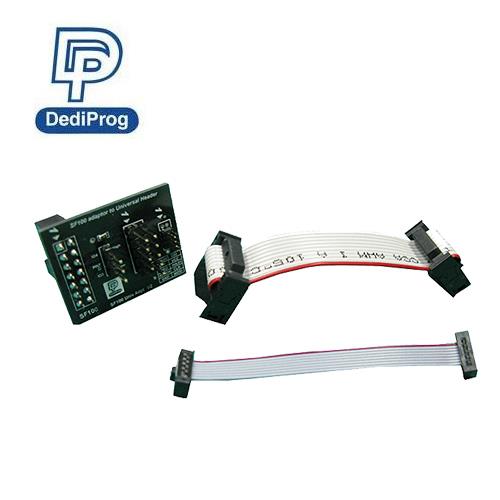

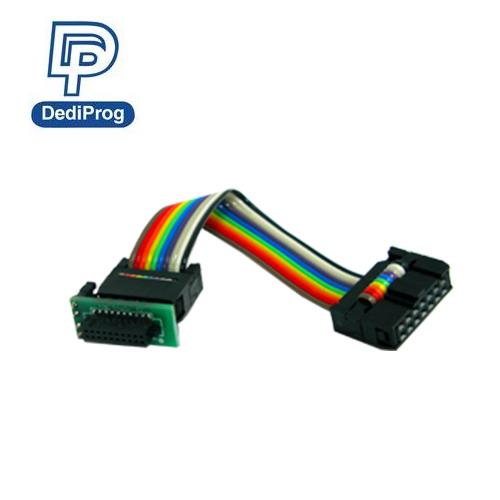

‧SF100 Universal Adaptor
