CPU
IntelR Socket 1151 for 8th Generation Core? i7/Core? i5/Core? i3/PentiumR/CeleronR 處理器
支援 IntelR 14 nm CPU
支援 IntelR Turbo Boost 技術2.0
*有關支援的 CPU 型號資訊，請參閱 tw.asus.com 網站內容。
* 是否支援 IntelR Turbo Boost Technology 2.0，需視 CPU 類型而定。
-
晶片組
IntelR B360
-
記憶體
2 x DIMM, 最高可支援到32GB, DDR4 2666/2400/2133 MHz 非ECC, 無緩衝區 記憶體
IntelR B360 Chipset
雙通道 記憶體架構
支援 IntelR Extreme Memory Profile (XMP)
*有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on IntelR 8th Gen. 6-core or higher processors.
-
顯示晶片
Integrated Graphics Processor- IntelR HD Graphics support
支援多 VGA 輸出 : DVI-D/D-Sub 連接埠
- 支援 DVI-D 最大解析度 1920 x 1200 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
最大共享記憶體 1024 MB
支援 IntelR InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider?
-
擴充槽
1 x PCIe 3.0/2.0 x16 (x16 mode, 灰色)
2 x PCIe 3.0/2.0 x1
-
資料儲存應用
IntelR B360 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*1
6 x SATA 6Gb/s埠, 灰色,
-
區域網路
RealtekR RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard
-
音效
RealtekR ALC887 8 通道 高傳真音效 CODEC *
- 支援 : 插頭偵測, 前面板插孔指定功能
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
-
USB連接埠
IntelR B360 Chipset :
2 x USB 3.1 Gen 2 up to 10Gbps 連接埠 (2 位於背板, teal blue, Type-A)
IntelR B360 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps 連接埠 (2 位於背板, 藍色, 2 位於主機板中, Type-A)
IntelR B360 Chipset :
6 x USB 2.0/1.1 連接埠 (2 位於背板, 黑色, 4 位於主機板中)
-
獨特功能
華碩 EPU :
- EPU
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design

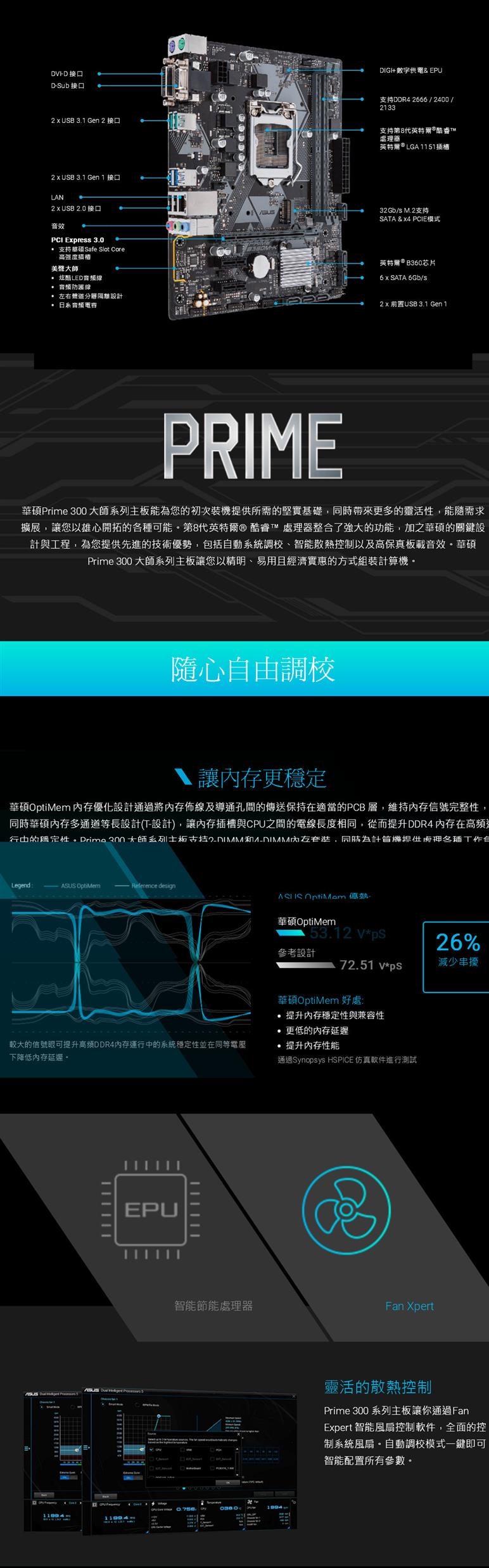

ASUS OptiMem：
- Optimem (Improved DDR4 stability)
華碩獨家功能 :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer

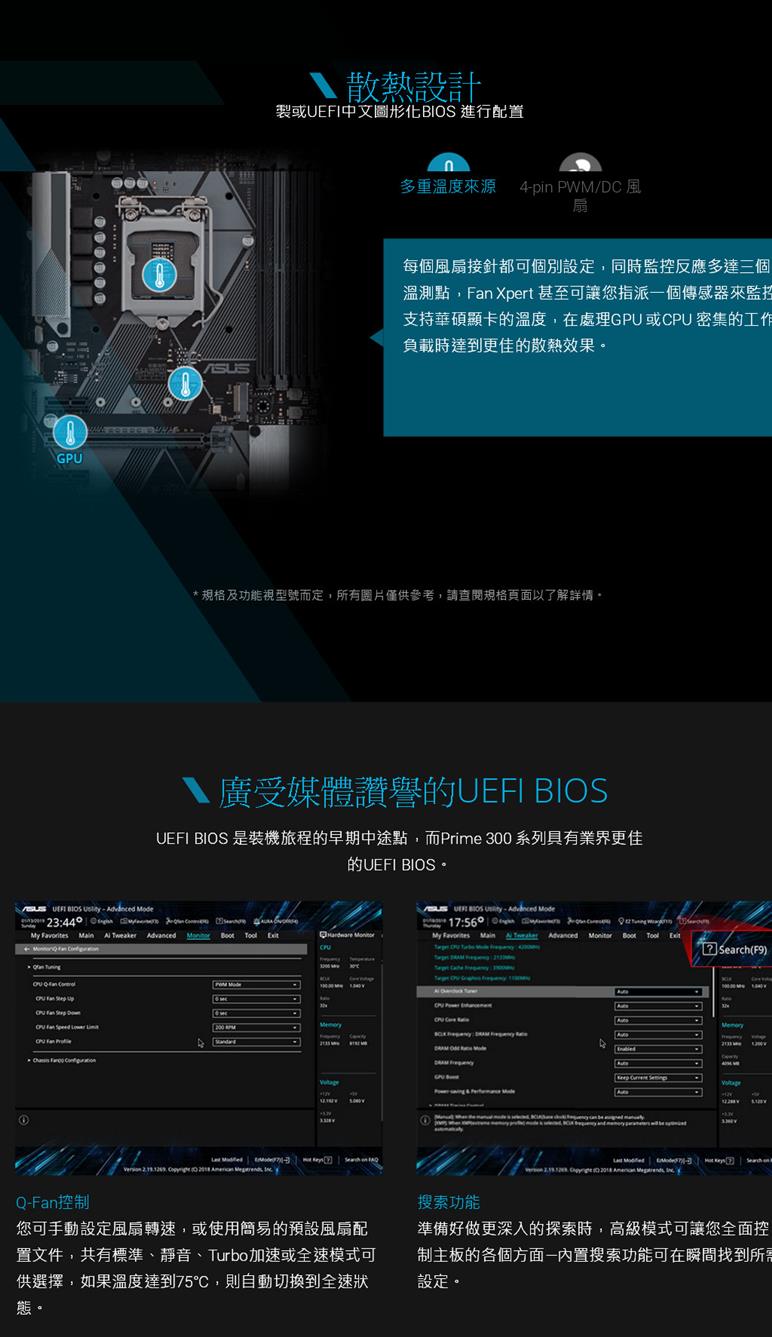

華碩靜音散熱解決方案 :
- 風格獨特的無風扇設計 - 散熱解決方案
- 華碩 Fan Xpert
華碩 EZ DIY :
- 華碩 CrashFree BIOS 3
- 華碩 EZ Flash 3
- ASUS UEFI BIOS EZ Mode
華碩 Q-Design :
- 華碩 Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
-
後面板輸出端子
1 x PS/2 鍵盤(紫)
1 x PS/2 滑鼠(綠)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) 連接埠
2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps
2 x USB 3.1 Gen 1 (藍色) Type-A, up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O
-
內建 I/O 連接孔
1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠 (19-pin)
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
1 x COM 接頭連接埠
6 x SATA 6Gb/s 接頭
1 x CPU 風扇接頭 (1 x 4 -pin)
1 x 機殼風扇接頭 (1 x 4 -pin)
1 x S/PDIF 輸出接頭
1 x 24-pin EATX 電源接頭
1 x 前面板音訊接頭 (AAFP)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x Clear CMOS 跳線
1 x 8-pin EATX 12V Power connectors
1 x System panel connector
1 x Speaker connector
-
配件
使用者手冊
I/O 擋板
2 x Serial ATA 6.0Gb/s 纜線
1 x M.2 Anchor
1 x SCD
-
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
-
管理能力
WOL by PME, PXE
-
作業系統
WindowsR 10 64-bit
-
主機板尺寸
mATX 主機板尺寸
8.9 吋 x 7.3 吋 ( 22.6 公分 x 18.5 公分 )
-
備註
*1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
