ASUS 華碩 M5A78L-M/USB3 主機板
ASUS 華碩 M5A78L-M/USB3 主機板
加入追蹤 加入追蹤
產品介紹 規格

ASUS 華碩 M5A78L-M/USB3 主機板

宅配到府 門市取貨
F1010199 FB分享分享 分享給 LINE 好友分享

．支援 AM3+ CPU
．Turbo Key- 觸動超頻按鈕，大幅提升系统性能！
．華碩 EPU - 系統層級節能省電
．防突波 - 全時電源防護，使系統免於風險
．Core Unlocker - 智能地釋放真正的核心效能
．全固態電容器 - 100%採用高品質高傳導聚合電容器

專人服務
大量報價
保固說明
三年保固
供貨狀況：
停售
特價
2390 市價$2590
數量
結帳方式：
ATM貨到付款LinePay刷卡刷卡分期
刷卡分期：

說明

3期0利率 $797/期
6期0利率 $398/期
8期0利率 $299/期
12期0利率 $199/期
配送方式：
門市取貨*良興配送

門市庫存 據點查詢

*庫存數量：網路訂購(0)、少量庫存(1~2)、現貨充足(3以上)。

*門市庫存以店內實際數量為準，可使用專人服務或撥打門市電話洽詢。

同類推薦

ASUS 華碩 M5A78L-M/USB3 主機板

產品特色

AMD® FX™ /Phenom™II /Athlon™II /Sempron™ 100 Series Processors

This motherboard supports AMD® AM3+multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.

Dual-Channel DDR3 2000(O.C.) support

The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.

EPU

System Level Energy Saving
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power usage for critical PC components in real-time–helping save power and money!

USB 3.0 support

Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components.

AI Suite II

One stop Access to Innovative ASUS Features
With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise Overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities.

ASUS Anti-Surge Protection

Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system.
1. Real-time over voltage detection.
2. Active protection against potential damage to your motherboards and systems.

8-channel high definition audio

The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks.

C.P.R.(CPU Parameter Recall)

The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.

EZ-Flash 2

Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.

CrashFree BIOS 3

Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.

ErP ready

The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.

規格說明

    處理器CPU

    AMD AM3+ FX™/Phenom™ II/Athlon™ II/Sempron™ 100 Series 處理器
    支援CPU up to 140 W
    AMD Cool 'n' Quiet™ Technology

    晶片組

    AMD 760G (780L)/SB710

    記憶體

    4 x DIMM, Max. 16GB, DDR3 2000(O.C.)/1866(O.C.)/1800(O.C.)/1600(O.C.)/1333/1066 Hz ECC, Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    *    有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 www.asus.com 網站或本使用手冊。
    *    由於作業系統的限制，當安裝記憶體總容量達 4GB 或以上時，WindowsR 32 位元作業系統僅能識別 3GB。如果您要在主機板上安裝 4GB 或更多的記憶體，可安裝 64 位元 Windows 作業系統。
    *    由於 CPU 規格，AMD 100 及 200 系列 CPU 最高支援 DDR3 1066Mhz。藉由華碩的設計，這款主機板最高可支援 DDR3 1866MHz。.

    系統匯流排

    Up to 5.2 GT/s HyperTransport™ 3.0

    Graphic

    Integrated ATI Radeon™ HD 3000 GPU
    Multi-VGA output support : HDMI/DVI/RGB ports *1
    - Supports HDMI with max. resolution 1920 x 1200 @ 60 Hz
    - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz
    - Supports RGB with max. resolution 2560 x 1440 @ 75 Hz
    Maximum shared memory of 1024 MB
    Hybrid CrossFireX™ Support *2

    擴充插槽

    1 x PCIe x16
    1 x PCIe x1
    2 x PCI

    資料儲存應用

    Built-in Controller :
    6 x SATA 3Gb/s     埠, 藍色
    支援Raid 0, 1, 10, JBOD

    區域網路

    Realtek® 8111E , 1 x Gigabit LAN Controller

    音效功能

    VIA VT1708S 8-Channel High Definition Audio CODEC

    USB連接埠

    Built-in Controller :
    10 x USB 2.0 port(s) (4 at back panel, black, 6 at mid-board)
    Built-in Controller :
    2 x USB 3.0 port(s) (2 at back panel, blue)

    獨家超頻功能

    Overclocking Protection :
    - ASUS C.P.R.(CPU Parameter Recall)

    特殊功能

    ASUS EPU :
    - EPU
    Turbo Key
    Core Unlocker
    ASUS Exclusive Features :
    - AI Charger
    - Anti-Surge
    ASUS Quiet Thermal Solution :
    - ASUS Q-Fan
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 2
    - ASUS MyLogo 2

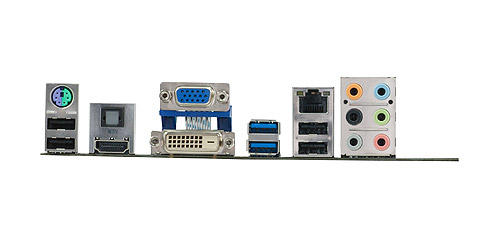

    背板I/O埠

    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.0
    4 x USB 2.0
    1 x Optical S/PDIF out
    6 x Audio jack(s)

    內建I/O連接孔

    3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
    1 x COM port(s) connector(s)
    6 x SATA 3Gb/s connector(s)
    1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x parallel port connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s)

    配件

    使用者手冊l
    I/O     檔板
    2 x SATA 3Gb/s     纜線

    BIOS

    16 Mb Flash ROM, AMI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.5, ACPI V2.0a

    支援光碟

    Drivers
    ASUS PC Probe II
    ASUS Update
    Anti-virus software (OEM version)

    主機板尺寸

    uATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

    備註

    *1: Support dual VGA output: HDMI & RGB, DVI & RGB.
    *2: Refer to www.amd.com for the Hybrid CrossFireX selected GPUs.

    • 電器，電子設備，含汞鈕電池等...不可與一般垃圾一起丟置，請遵照各地法規處裡電子產品。
    • PCB板顏色與搭贈軟體會依情況而有所不同，恕不另行通知。
    • 本網站所提到的產品規格及資訊僅提供參考，內容會隨時更新，恕不另行通知。
    • 商標聲明：本網站所談論到的產品名稱僅做識別之用，而這些名稱可能是屬於其他公司的註冊商標或是版權。

    ※以上規格資料若有任何錯誤，以原廠所公佈資料為準。

    包裝附件

    使用者手冊 X l
    I/O 檔板
    2 x SATA 3Gb/s 纜線
