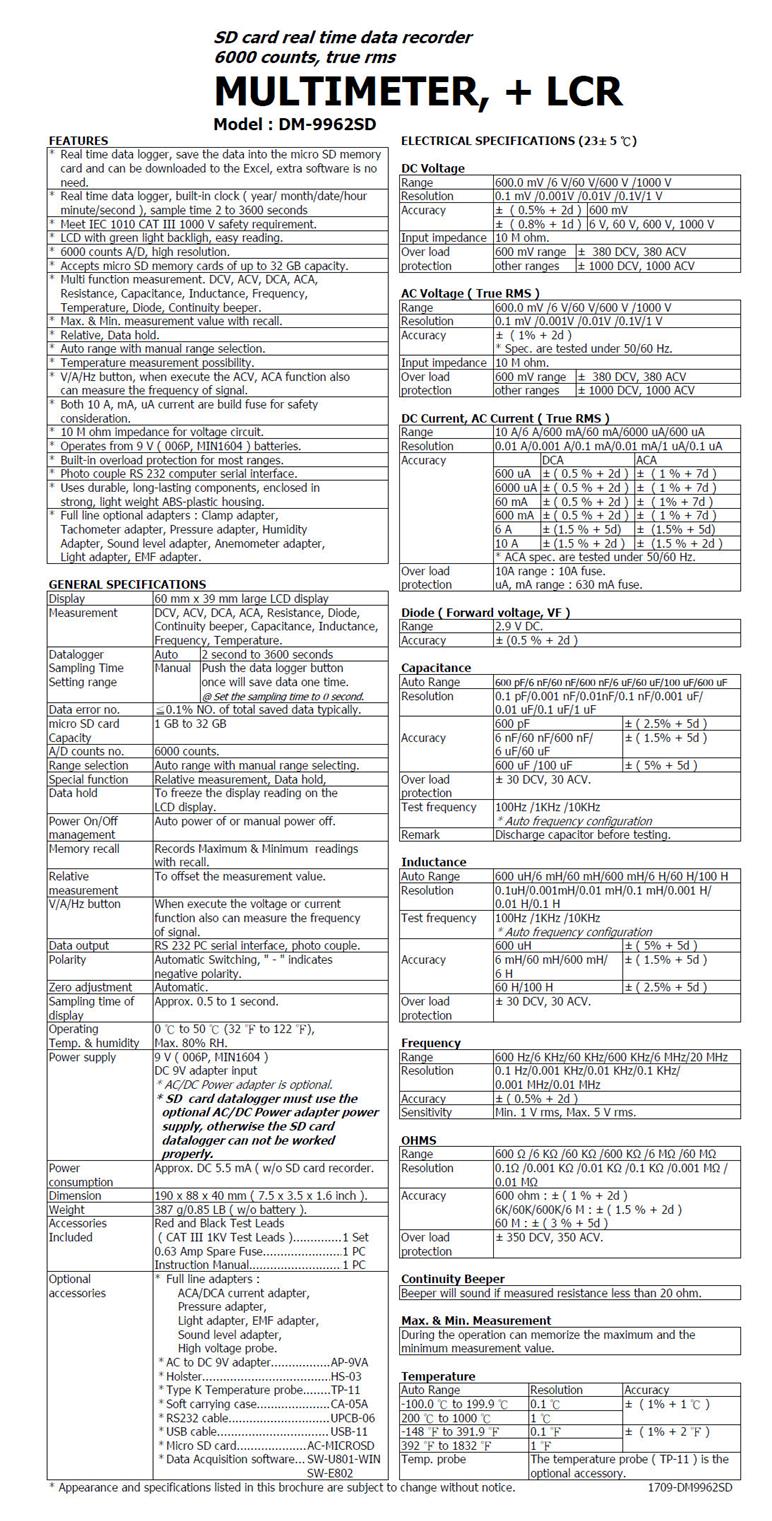

顯示 (Display)
-
60 mm x 39 mm large LCD display
測量 (Measurement)
-
DCV, ACV, DCA, ACA, Resistance, Diode, Continuity beeper, Capacitance, Inductance, Frequency, Temperature.
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
-
Aut： 2 second to 3600 seconds
-
Manual：Push the data logger button once will save data one time.
-
@ Set the sampling time to 0 second.
數據錯誤編號
-
≦0.1% NO. of total saved data typically.
微記憶卡容量
-
1 GB to 32 GB
A/D 計數 (A/D counts no.)
-
6000 counts.
範圍選擇 (Range selection)
-
Auto range with manual range selecting.
特殊功能 (Special function)
-
Relative measurement, Data hold,
讀值鎖定 (Data hold)
-
To freeze the display reading on the LCD display.
電源開關機管理 (Power On/Off management)
-
Auto power of or manual power off.
記憶重呼 (Memory recall)
-
Records Maximum & Minimum readings with recall.
相對測量 (Relative measurement)
-
To offset the measurement value.
V/A/HZ按鍵 (V/A/Hz button)
-
When execute the voltage or current function also can measure the frequency of signal.
資料輸出 (Data output)
-
RS 232 PC serial interface, photo couple.
極性 (Polarity)
-
Automatic Switching, " - " indicates negative polarity.
歸零調整 (Zero Adjustment)
-
Automatic.
顯示的取樣時間 (Sampling Time of display)
-
Approx. 0.5 to 1 second.
操作溫度 (Operating Temp.)
-
0 ℃ to 50 ℃ (32 ℉ to 122 ℉).
操作溼度 (Operating Humidity)
-
Max. 80% RH.
電源供應 (Power Supply)
-
9 V ( 006P, MIN1604 )
-
DC 9V adapter input
-
* AC/DC Power adapter is optional.
-
* SD card datalogger should use the AC/DC Power adapterpower supply
電源消耗 (Power Consumption)
-
Approx. DC 5.5 mA ( w/o SD card recorder.
體積 (Dimensions)
-
190 x 88 x 40 mm ( 7.5 x 3.5 x 1.6 inch ).
重量 (Weight)
-
387 g/0.85 LB ( w/o battery ).
附件 (Accessories Included)
-
Red and Black Test Leads ( CAT III 1KV Test Leads )...1 Set
-
0.63 Amp Spare Fuse.......................1 PC
-
Instruction Manual........................1 PC
選購附件及轉換器
-
Full line adapters :
-
ACA/DCA current adapter, Pressure adapter,Light adapter, EMF adapter, Sound level adapter, High voltage probe.
-
AC to DC 9V adapter.............AP-9VA
-
Holster.........................HS-03
-
Type K Temperature probe........TP-11
-
Soft carrying case..............CA-05A
-
RS232 cable.....................UPCB-06
-
USB cable................................ USB-11
-
Micro SD card....................AC-MICROSD
電器規格 (23±5 ℃)
直流電壓 DC Voltage
-
Range：600.0 mV /6 V/60 V/600 V /1000 V
-
Resolution：0.1 mV /0.001V /0.01V /0.1V/1 V
-
Accuracy
-
600 mV：± ( 0.5% + 2d )
-
6 V, 60 V, 600 V, 1000 V：± ( 0.8% + 1d )
-
Input impedance：10 M ohm.
-
Over load protection
-
± 380 DCV, 380 ACV：600 mV range
-
± 1000 DCV, 1000 ACV：other ranges
交流電壓 AC Voltage ( True RMS )
-
Range：600.0 mV /6 V/60 V/600 V /1000 V
-
Resolution：0.1 mV /0.001V /0.01V /0.1V/1 V
-
Accuracy：
-
± ( 1% + 2d )
-
* Spec. are tested under 50/60 Hz.
-
Input impedance：10 M ohm.
-
Over load protection：
-
± 380 DCV, 380 ACV：600 mV range
-
± 1000 DCV, 1000 ACV：other ranges
交/直流電流 DC Current, AC Current ( True RMS )
-
Range：10 A/6 A/600 mA/60 mA/6000 uA/600 uA
-
Resolution：0.01 A/0.001 A/0.1 mA/0.01 mA/1 uA/0.1 uA
-
Accuracy：
|
|
DCA |
ACA |
|
600 uA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
|
6000 uA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
|
60 mA |
± ( 0.5 % + 2d ) |
± ( 1% + 7d ) |
|
600 mA |
± ( 0.5 % + 2d ) |
± ( 1 % + 7d ) |
|
6 A |
± (1.5 % + 5d) |
± (1.5% + 5d) |
|
10 A |
± (1.5 % + 2d ) |
± (1.5 % + 2d ) |
|
* ACA spec. are tested under 50/60 Hz. |
-
Over load protection：
-
10A range : 10A fuse.
-
uA, mA range : 630 mA fuse.
二極體 Diode Diode ( Forward voltage, VF )
-
Range：2.9 V DC.
-
Accuracy：± (0.5 % + 2d )
電容 Capacitance
-
Auto Range：600 pF/6 nF/60 nF/600 nF/6 uF/60 uF/100 uF/600 uF
-
Resolution：0.1 pF/0.001 nF/0.01nF/0.1 nF/0.001 uF/0.01 uF/0.1 uF/1 uF
-
Accuracy：
-
600 pF：± ( 2.5% + 5d )
-
6 nF/60 nF/600 nF/6 uF/60 uF：± ( 1.5% + 5d )
-
600 uF /100 uF：± ( 2.5% + 5d )
-
Over load protection：± 30 DCV, 30 ACV.
-
Test frequency：100Hz /1KHz /10KHz *Auto frequency configuration
-
Remark：Discharge capacitor before testing.
電感 Inductance
-
Auto Range：600 uH/6 mH/60 mH/600 mH/6 H/60 H/100 H
-
Resolution：0.1uH/0.001mH/0.01 mH/0.1 mH/0.001 H/0.01 H/0.1 H
-
Test frequency：100Hz /1KHz /10KHz *Auto frequency configuration
-
Accuracy:
-
600 uH：± ( 5% + 5d )
-
6 mH/60 mH/600 mH/6 H：± ( 1.5% + 5d )
-
60 H/100 H：± ( 2.5% + 5d )
-
Over load protection：± 30 DCV, 30 ACV.
頻率 Frequency
-
Range：600 Hz/6 KHz/60 KHz/600 KHz/6 MHz/20 MHz
-
Resolution：0.1 Hz/0.001 KHz/0.01 KHz/0.1 KHz/0.001 MHz/0.01 MHz
-
Accuracy：± ( 0.5% + 2d )
-
Sensitivity：Min. 1 V rms, Max. 5 V rms.
電阻 OHMS
-
Range：600 Ω /6 KΩ /60 KΩ /600 KΩ /6 MΩ /60 MΩ
-
Resolution：0.1Ω /0.001 KΩ /0.01 KΩ /0.1 KΩ /0.001 MΩ /0.01 MΩ
-
Accuracy：
-
600 ohm : ± ( 1 % + 2d )
-
6K/60K/600K/6 M : ± ( 1.5 % + 2d )
-
60 M : ± ( 3 % + 5d )
-
Over load protection：± 350 DCV, 350 ACV.
導通蜂鳴 Continuity Beeper
-
Beeper will sound if measured resistance less than 20 ohm.
最大及最小測量 Max. & Min. Measurement
-
During the operation can memorize the maximum and the minimum measurement value.
溫度 Temperature
|
Auto Range |
Resolution |
Accuracy |
|
-100.0 ℃ to 199.9 ℃ |
0.1 ℃ |
± ( 1% + 1 ℃ ) |
|
200 ℃ to 1000 ℃ |
1 ℃ |
|
-148 ℉ to 391.9 ℉ |
0.1 ℉ |
± ( 1% + 2 ℉ ) |
|
392 ℉ to 1832 ℉ |
1 ℉ |
|
Temp. probe |
The temperature probe ( TP-11 ) is the optional accessory. |
※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
