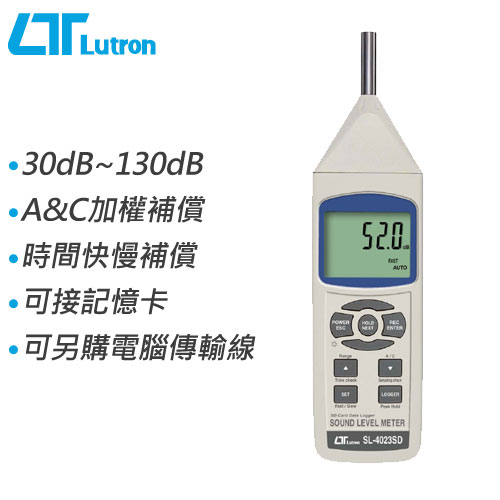

電路 (Circuit)
Custom one-chip of microprocessor LSI circuit.
顯示 (Display)
LCD size : 52 mm x 32 mm
LCD with green backlight ( ON/OFF ).
測量型式 (Measurement Type)
SPL : Sound pressure level,
Leq : Equivalent Continuous Noise Level.
測量範圍 (Measurement Range)
30 to 130 dB.
解析度 (Resolution)
0.1 dB.
功能 (Function)
dB ( A & C frequency weighting )
Time weighting ( Fast, Slow )
Peak hold
Data hold Record ( Max., Min. )
精確度 (Accuracy) (23± 5 ℃)
Characteristics of " A " frequenc weighting network meet IEC 61672 class 2.
Under 94 dB input signal, the accuracy are :
31.5 Hz : ± 3.5 dB
63 Hz : ± 2.5 dB
125 Hz : ± 2.0 dB
250 Hz : ± 1.9 dB
500 Hz : ± 1.9 dB
1 KHz : ± 1.4 dB
2 KHz : ± 2.6 dB
4 KHz : ± 3.6 dB
8 KHz : + 5.6 dB
Remark : The above spec. are tested under the environment RF Field Strength less than 3 V/M & frequency less than 30 MHz only.
頻率加權網路 (Frequency Weighting Network)
Characteristics of A & C.
A weighting - The characteristic is simulated as "Human Ear Listing" response. Typical, if making the environmental sound level measurement, always select to A weighting.
C weighting - The characteristic is near the "FLAT" response. Typical, it is suitable for checking the noise of machinery (Q.C. check) & knowing the sound pressure level of the tested equipment.
資料鎖定 (Data hold)
Freeze the display reading.
快慢時間加權 Time weighting (Fast, Slow)
Fast - t= 125 ms
Slow - t = 1 s
* "Fast" range is simulated the human ear response time.
* "Slow" range is easy to get the avg. values of vibration sound level.
範圍選擇 (Range selector)
Auto range : 30 to 130 dB.
Manual range : 2 range
30 to 80 dB
80 to 130 dB
50 dB on each step, with over & under range indicating.
測量頻率 (Measurement Frequency)
31.5 Hz to 8,000 Hz.
麥克風 (Microphone type)
Electric condenser microphone.
麥克風尺寸 (Size of microphone)
Out size, 12.7 mm Dia. ( 0.5 inch).
校正器 (Calibrator)
B & K (Bruel & kjaer), multi-fuction acoustic calibrator, model : 4226.
校正 VR (Calibration VR)
Build in external calibration VR, easy to calibrate on 94 dB level by screw driver.
* Calibrated via external SOUND CALIBRATOR ( SC-942, optional ).
資料集錄器取樣時間設定範圍 (Datalogger Sampling Time Setting range)
Auto : 1 second to 3600 seconds
@ Sampling time can set to 1 second, but memory data may loss.
Manual : Push the data logger button once will save data one time.
@ Set the sampling time to 0 second.
@ Manual mode, can also select the 1 to 99 position ( Location ) no.
記憶卡 (Memory Card)
SD memory card. 1 GB to 16 GB.
優越的設定 (Advanced setting)
* Set clock time ( Year/Month/Date, Hour/Minute/ Second )
* Decimal point of SD card setting
* Auto power OFF management
* Set beep Sound ON/OFF
* Set sampling time
* SD memory card Format
過載指示 (Over Indication)
Show " - - - - ".
資料鎖定 (Data hold)
Freeze the display reading.
記憶回叫 (Memory Recall)
Maximum & Minimum value.
顯示的取樣時間 (Sampling Time of display)
Approx. 1 sec
資料輸出 (Data Output)
RS 232/USB PC computer interface.
* Connect the optional RS232 cable UPCB-02 will get the RS232 plug.
* Connect the optional USB cable USB-01 will get the USB plug.
關機 (Power off)
Auto shut off saves battery life or manual off by push button.
操作溫度 (Operating Temp. )
0 to 50 ℃.
操作溼度 (Operating Humidity)
Less than 80% R.H.
電源供應 (Power Supply)
Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 6 PCs, or equivalent.
DC 9V adapter input
* AC/DC power adapter is optional.
電源電流 (Power Current)
Normal operation ( w/o SD card save data and LCD Backlight is OFF) : Approx. DC 12 mA
When SD card save the data but and LCD Backlight is OFF) : Approx. DC 51 mA.
* AIf LCD backlight on, the power consumption will increase approx. 30 mA.
重量 (Weight)
489 g/1.08 LB.
尺寸 (Size)
245 x 68 x 45 mm. ( 9.6 x 2.7x 1.9 inch ).
附件 (Accessories Included)
* Instruction manual................1 PC
* Hard carrying case, CA-06.........1 PC
選購附件 (Optional & accessories Temp. Probe)
94 dB sound calibrator : Model : SC-941.
94 dB/114 dB sound calibrator : Model : SC-942.
Wind shield ball : Model : SB-01
SD Card ( 2 GB )
USB cable : Model : USB-01
RS232 cable ( isolated RS232 cable ) : Model : UPCB-02.
Data acqusition software : Model : SW-U801-WIN
AC to DC 9V adapter.
Soft carrying case, CA-05A.
※以上規格資料若有任何錯誤，以原廠所公佈資料為準。
